Calibradores

Medidores de Temperatura Mecánicos

   Capillary
Part No.TypeRangeLength (inches)
1706542Oil0 – 150 °CN/A
1997952Water50 – 150°C82”
1997953Water50 – 150 °C100”
1997954Water50 – 150°C132”
1997955Water50 – 150°C132”
2005220Water0 – 130 °C36”
2005222Water50 – 130°C68”
2005227Water50 – 130°C225”
2005231Water50 – 130°C35”
2005233Water50 – 130°C75”
2005234Oil50 – 120 °C108”
2005235Water50 – 120°C155”
2005236Water50 – 120°C202”
2005247Water50 – 120°C29.25”
2243343Water40 – 130°C79”
2243344Water40 – 120 °C108”
4N7562Water40 – 120 °C203”
4W2683Water130 – 250 °F130”
7N1990Water40 – 120 °C232”
8S4914WaterN/A133”
Contacta con nosotros

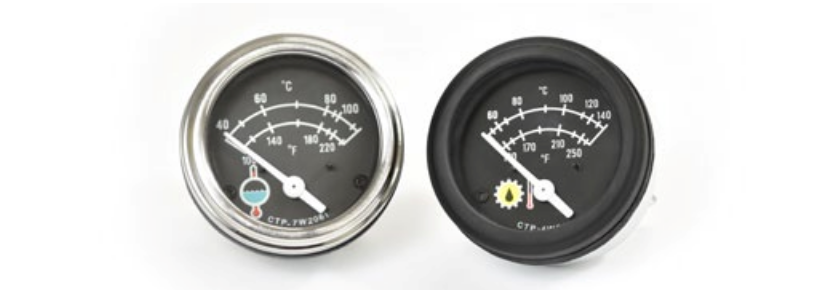

Medidores de Temperatura Eléctricos

Part No.VoltageTypeTypeDIA (mm)
4W048324V DCWATER0-140 °C52mm
4W048524V DCENGINE OIL40-160 °C52mm
4W112924V DCENGINE OIL40-120 °C52mm
6N067424V DCENGINE OIL40-120 °C52mm
7W492724V DCENGINE OIL79 Sweep Angle52mm
7W206024V DCWATER40-160 °C52mm
7W206112V DCWATER0-120 °C52mm

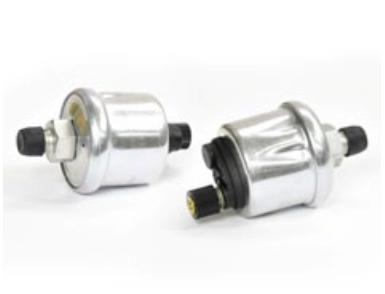

Transductor de Presión

Part No.RangeWorking VoltageThread Size
9×11240-80 PSI12 or 24 V1/8” -27 nTP

Medidores de Presión Eléctrico

 Operating RangeDIA (mm)
Part No.VoltageTypeType
6N067324VOIL PRESSURE0-100 PSI52mm
7W293724VOIL PRESSURE0-80 PSI52mm

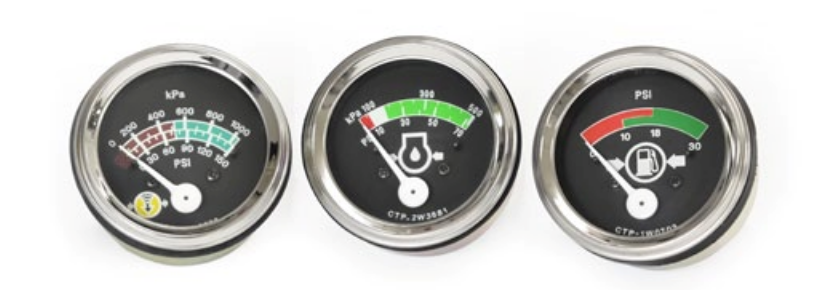

Medidores de Presión Mecánicos

Part No.RangeEngine  ModelDIA (mm)
1W07030-30 PSIFUEL PRESSURE52 mm
1W07050-50 PSIOIL PRESSURE52 mm
1W07070-28 PSIFUEL PRESSURE52 mm
1W07080-150 PSIAIR PRESSURE52 mm
1W53530-15 PSIOIL PRESSURE52 mm
1W75540-30 PSIFUEL PRESSURE52 mm
1W75720-70 PSIAIR PRESSURE52 mm
2W36810-70 PSIOIL PRESSURE52 mm
2W36840-300 PSIAIR PRESSURE52 mm
26608890-50 PSIFUEL PRESSURE52 mm
3H33440-28 PSIFUEL PRESSURE52 mm
4W05060-100 PSIAIR PRESSURE66 mm
4W05090-400 PSIAIR PRESSURE66 mm
4W05100-50 PSIAIR PRESSURE66 mm

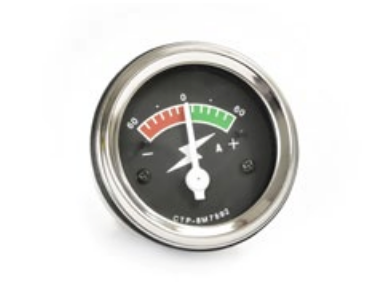

Amperímetros

Part No.RangeDIA (mm)
1F7307-30,0,+30A52 mm
8M7892-60,0,+60A52 mm
